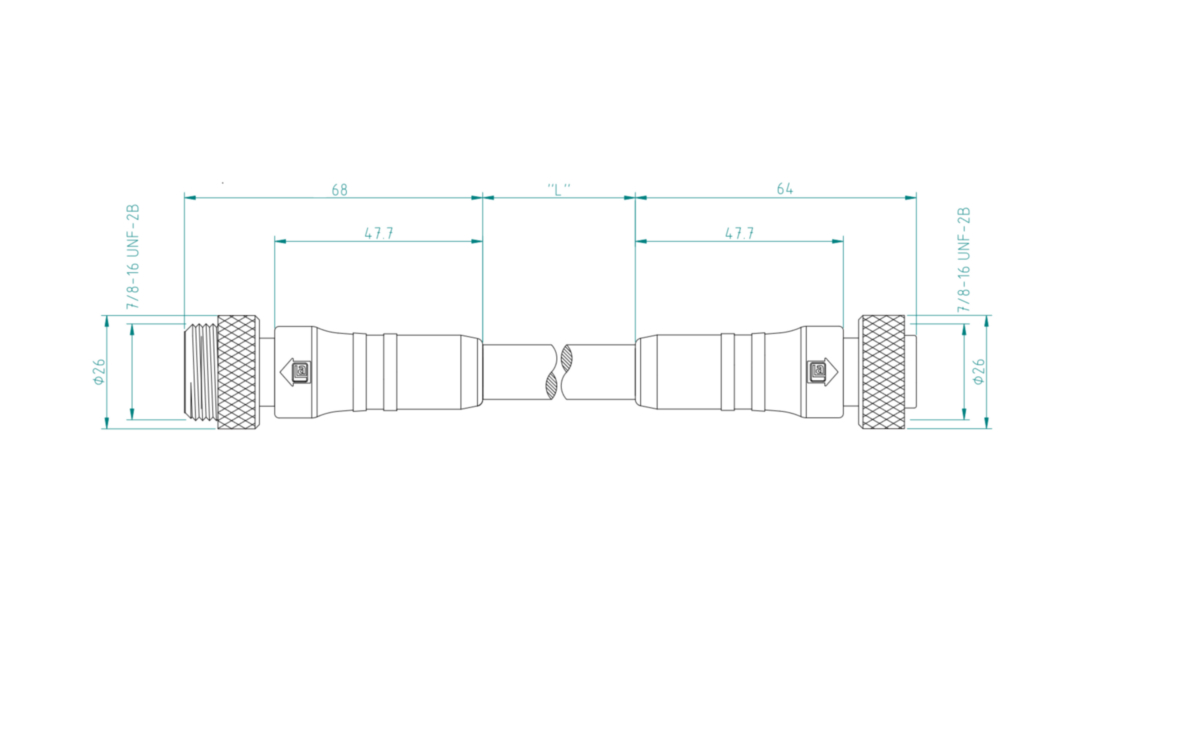

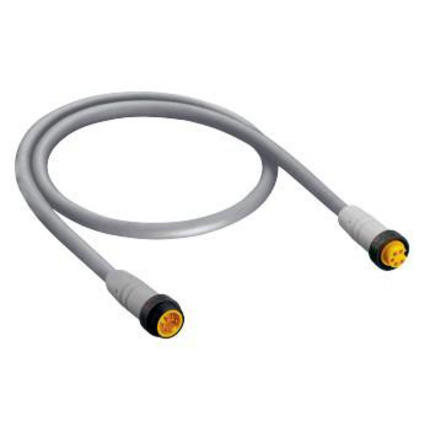

(4)0935 613 301 - CANopen / DeviceNet, Cordset, double ended: 7/8", Male, Straight, 5 pole, to a, 7/8", Female, Straight, 5 pole, with cable type, Grey, PVC, DeviceNet-THICK
| Product Family: | Data Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding Type: | Shielded |
| Voltage Rating: | 300 V |
| Rated Voltage (UL): | 300 V |
| Current Rating: | 8 A |
| Data Transmission Type: | CANopen / DeviceNet |
| Data Transmission Rate: | CANopen / DeviceNet |
| Side 1 Product Sub Family: | 7/8" |
| Side 1 Type of Contact/Gender: | Male |
| Connector Design: | Straight |
| Attachment Type: | Coupling Screw with external threads |

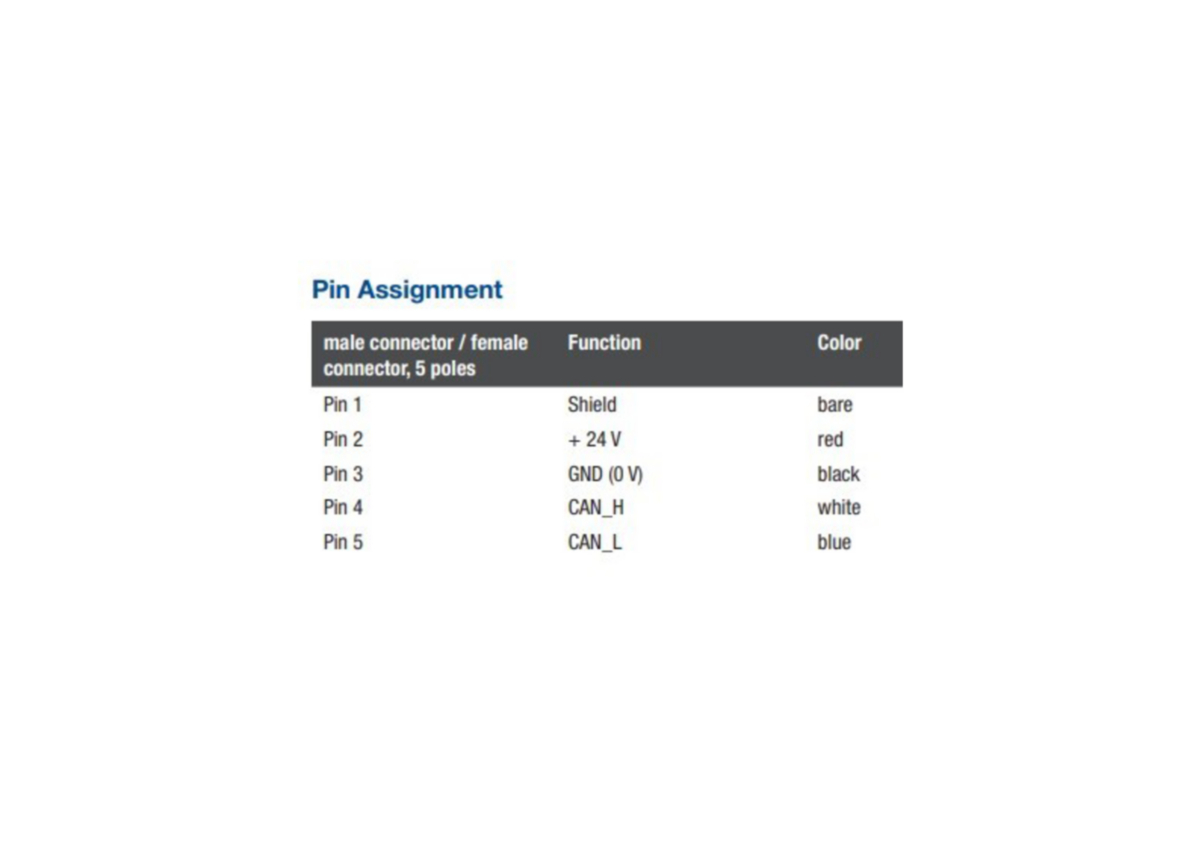

| Number of Pins: | 5 |
| Coding, Side 1: | A |
| Ambient Temperature (Operation)*: | -40° C - +90° C |
| Protection Degree / IP Rating**: | IP68 |
| Contact Base Material: | CuZn |
| Side 1 Contact Plating: | gold over silver plated |
| Contact Bearer Material: | PUR, yellow |
| Contact Bearer Color: | Yellow |
| Molded Body Material: | Black |
| Molded Body Color: | Grey |
| Attachment Material: | AI, anodized black |
| O-Ring Material: | 2 Pair + Drain |
| Cable Number: | 613 |

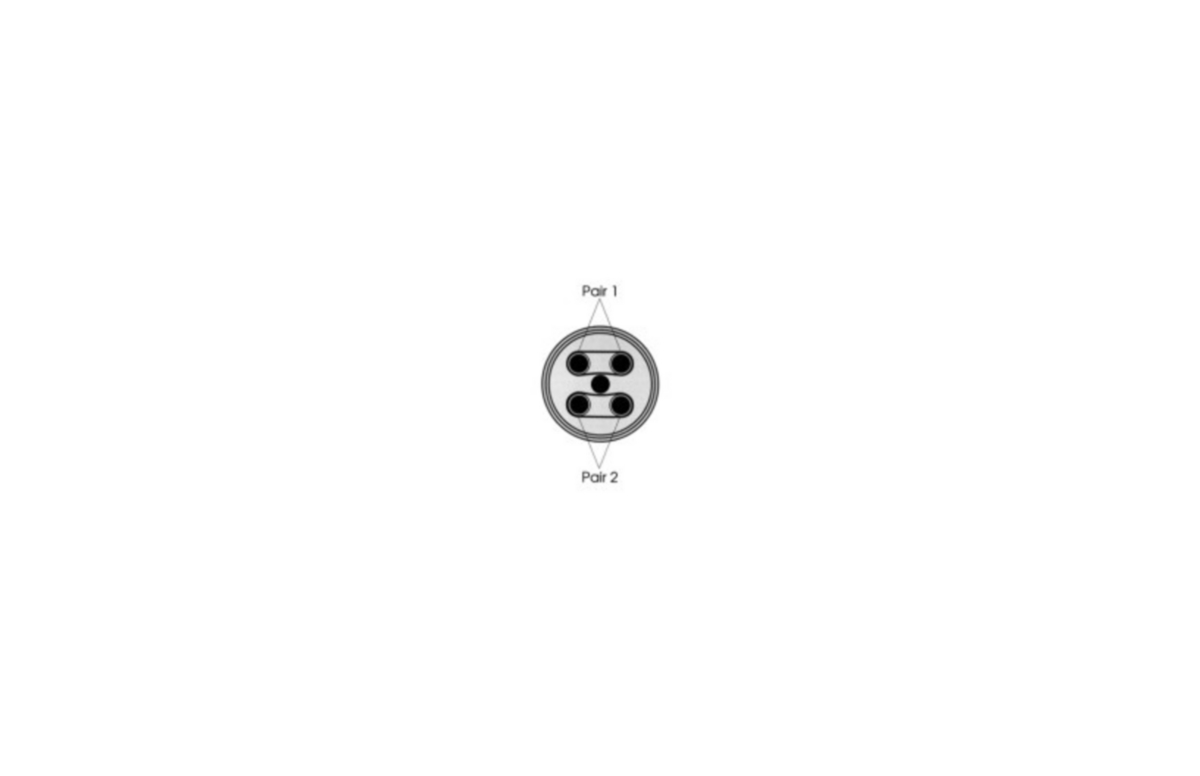

| Number of Wires: | 2 Pair + Drain |
| Minimal Bending Radius (Fixed Inst): | ˃ 7 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 1 M |
| Conductor Material: | Cu |
| Cable Jacket Material: | PVC |
| Cable Jacket Color: | Grey |
| Cable Diameter D: | Ø 12.1 mm |
| Wire Insulation Material: | PVC-Power, Data-PE |
| Insulated Wire Diameter: | Power Ø2.77 mm, Data Ø3.81 mm |
| Overall Shield (Cable): | Braid, TC, 65% Coverage |
| Ambient Temperature (Fixed Installation): | - 20 to + 60°C (60°C UL) |
| UL Cable Type: | CMG, PLTC-ER or UL AWM 20201, CSA AWM I/II A/B |
| Flammability Class (Cable Jacket): | FT4, IEC 60332-1-2 |
| Cable Characteristics: | Mechanical Resistances, Abrasion, Impact, Weathering; Chemical Resistances to Oils, Acids, Alkalis |
| Side 2 Product Sub Family: | 7/8" |
| Side 2 Type of Contact/Gender: | Female |
| Connector Design, Side 2: | Straight |
| Attachment Type, Side 2: | Coupling Nut with internal threads |
| Number of Pins, Side 2: | 5 |
| Coding, Side 2: | A |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 90 °C |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Contact Base Material, Side 2: | CuZn |
| Contact Plating, Side 2: | gold over silver plated |
| Contact Bearer Material, Side 2: | PUR |
| Contact Bearer Color, Side 2: | Yellow |
| Molded Body Material, Side 2: | TPU |
| Molded Body Color, Side 2: | Grey |
| Attachment Material, Side 2: | AI, anodized black |
| Note, Side 2: | Do not connect or disconnect under load. |
| RoHS Compliant: | Yes |
| Oil Resistance: | Yes |
| Protection Degree / IP Rating Note: | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
| Note Derating: | Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 900001616 | 0935 613 301/0.3M | 0.3 m |
| 59476 | 0935 613 301/0,3 M | 0.3 m |
| 910001616 | 0935 613 301/0.3M-Y | 0.3 m |
| 900001747 | 0935 613 301/0.6M | 0.6 m |
| 22418 | 0935 613 301/0,6 M | 0.6 m |
| 910001747 | 0935 613 301/0.6M-Y | 0.6 m |
| 900001727 | 0935 613 301/1M | 1 m |
| 53828 | 0935 613 301/1 M | 1 m |
| 910001727 | 0935 613 301/1M-Y | 1 m |
| 900001290 | 0935 613 301/2M | 2 m |
| 2256 | 0935 613 301/2 M | 2 m |
| 910001290 | 0935 613 301/2M-Y | 2 m |
| 900001740 | 0935 613 301/3M | 3 m |
| 71271 | 0935 613 301/3 M | 3 m |
| 910001740 | 0935 613 301/3M-Y | 3 m |
| 900000478 | 0935 613 301/4M | 4 m |
| 43437 | 0935 613 301/4 M | 4 m |
| 910000478 | 0935 613 301/4M-Y | 4 m |
| 900001291 | 0935 613 301/5M | 5 m |
| 910001291 | 0935 613 301/5M-Y | 5 m |
| 900001734 | 0935 613 301/6M | 6 m |
| 2257 | 0935 613 301/6 M | 6 m |
| 910001734 | 0935 613 301/6M-Y | 6 m |
| 900005045 | 0935 613 301/7M | 7 m |
| 900001854 | 0935 613 301/8M | 8 m |
| 910001854 | 0935 613 301/8M-Y | 8 m |
| 900001851 | 0935 613 301/9M | 9 m |
| 910001851 | 0935 613 301/9M-Y | 9 m |
| 900001292 | 0935 613 301/10M | 10 m |
| 84447 | 0935 613 301/10 M | 10 m |
| 910001292 | 0935 613 301/10M-Y | 10 m |
| 900001618 | 0935 613 301/12M | 12 m |
| 910001618 | 0935 613 301/12M-Y | 12 m |
| 900002974 | 0935 613 301/13M | 13 m |
| 910002974 | 0935 613 301/13M-Y | 13 m |
| 900001619 | 0935 613 301/15M | 15 m |
| 910001619 | 0935 613 301/15M-Y | 15 m |
| 900001852 | 0935 613 301/16M | 16 m |
| 910001852 | 0935 613 301/16M-Y | 16 m |
| 900001620 | 0935 613 301/18M | 18 m |
| 910001620 | 0935 613 301/18M-Y | 18 m |
| 900001853 | 0935 613 301/19M | 19 m |
| 910001853 | 0935 613 301/19M-Y | 19 m |
| 900002954 | 0935 613 301/20M | 20 m |
| 8398 | 0935 613 301/20 M | 20 m |
| 910002954 | 0935 613 301/20M-Y | 20 m |
| 900001621 | 0935 613 301/21M | 21 m |
| 910001621 | 0935 613 301/21M-Y | 21 m |
| 900001622 | 0935 613 301/25M | 25 m |
| 910001622 | 0935 613 301/25M-Y | 25 m |
| 900001614 | 0935 613 301/30M | 30 m |
| 910001614 | 0935 613 301/30M-Y | 30 m |
| 900005196 | 0935 613 301/31M | 31 m |
| 900005069 | 0935 613 301/35M | 35 m |
| 900005197 | 0935 613 301/46M | 46 m |
| 900004024 | 0935 613 301/50M | 50 m |
| 910004024 | 0935 613 301/50M-Y | 50 m |
| 900016434 | 0935 613 301/55M | 55 m |
| 900016433 | 0935 613 301/75M | 75 m |
