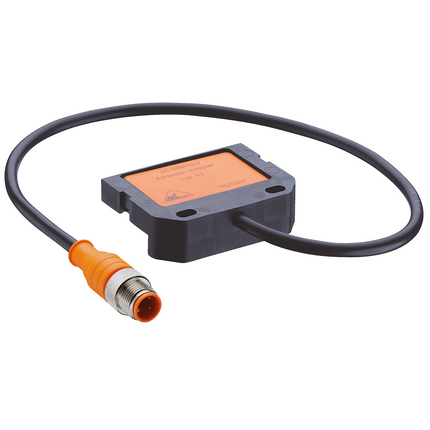

0913 ATL 002 - adressing adapter




adressing adapter

Product Description

Brand: Belden
Product Family: ASi
Product Sub Family: ASi
Control Cable Interface: M12

General Data

Housing Material: Plastic, PA
Dimensions (W x H x D): 58 mm x 16 mm x 438 mm
Fastening Torque (I/O Connection): M12: 0,5 Nm

Power Supply

Actuator Supply Voltage (Nominal): 24 V DC (SELV/PELV)
Actuator Supply Voltage (Range): 10 V DC to 30 V DC

Digital Input Channels

Input Wiring: 2-, 3-, 4-wire

Digital Output Channels

Galvanically Isolated: No

Safety & Environmental Compliance

CE: Yes
RoHS Compliant: Yes

Notes

Variants
Item #Item Description
109380913 ATL 002/0,35 M
Update and Revision: Revision Number: 0.34 Revision Date: 04-08-2022
0913_ATL_002.zip
Description: 3D CAD Data - stp
Short Form Catalog IO Systems German.pdf
Short Form Catalog IO Systems English.pdf
No accessories are available for this product
