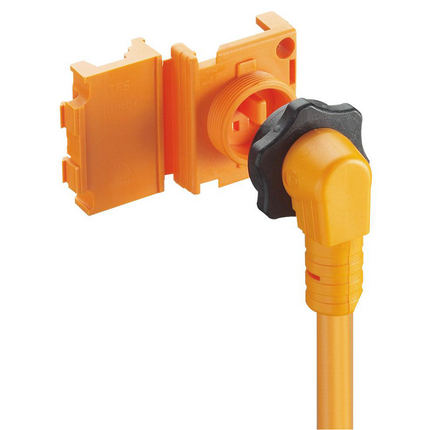

0911 ANC 407 - AS-Interface angle connectors; 1 assembled connector




AS-Interface angle connectors; 1 assembled connector

Product Description

Brand: Belden
Product Family: ASi
Product Sub Family: ASi
Control Cable Interface: Open End

Power Supply

Actuator Supply Voltage (Nominal): 24 V DC (SELV/PELV)
Actuator Supply Voltage (Range): 10 V DC to 30 V DC

Digital Input Channels

Input Wiring: 2-, 3-, 4-wire

Safety & Environmental Compliance

CE: Yes
RoHS Compliant: Yes

Notes

System Power Supply Connection Note: *do not connect / disconnect under voltage!
Variants
Item #Item Description
109320911 ANC 407/5 M
128220911 ANC 407/10 M
9346363030911 ANC 407/1 M
109310911 ANC 407/2 M
Update and Revision: Revision Number: 0.37 Revision Date: 04-08-2022
0911_ANC_407.zip
Description: 3D CAD Data - stp
Short Form Catalog IO Systems German.pdf
Short Form Catalog IO Systems English.pdf
No accessories are available for this product
