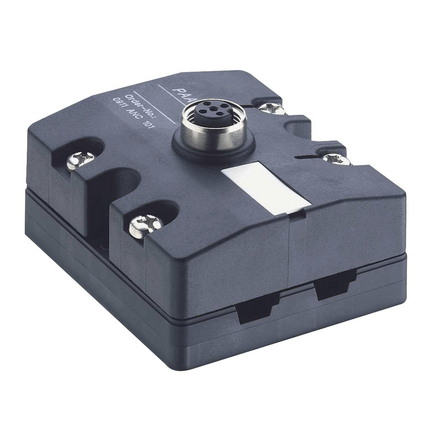

(109)PAAS-M12, passive branch, one actuator/sensor on ASi standard flat cable system
| Brand: | Belden |
| Product Family: | ASi |
| Product Sub Family: | ASi |
| Item Description: | 0911 ANC 101 |
| I/O Connection: | M12, 5-poles, A-coded |
| Number of Ports: | 1 |
| Housing Material: | Plastic, PA |
| Housing Color: | Black |
| Protection Degree / IP Rating**: | IP65 |
| Potted: | No |

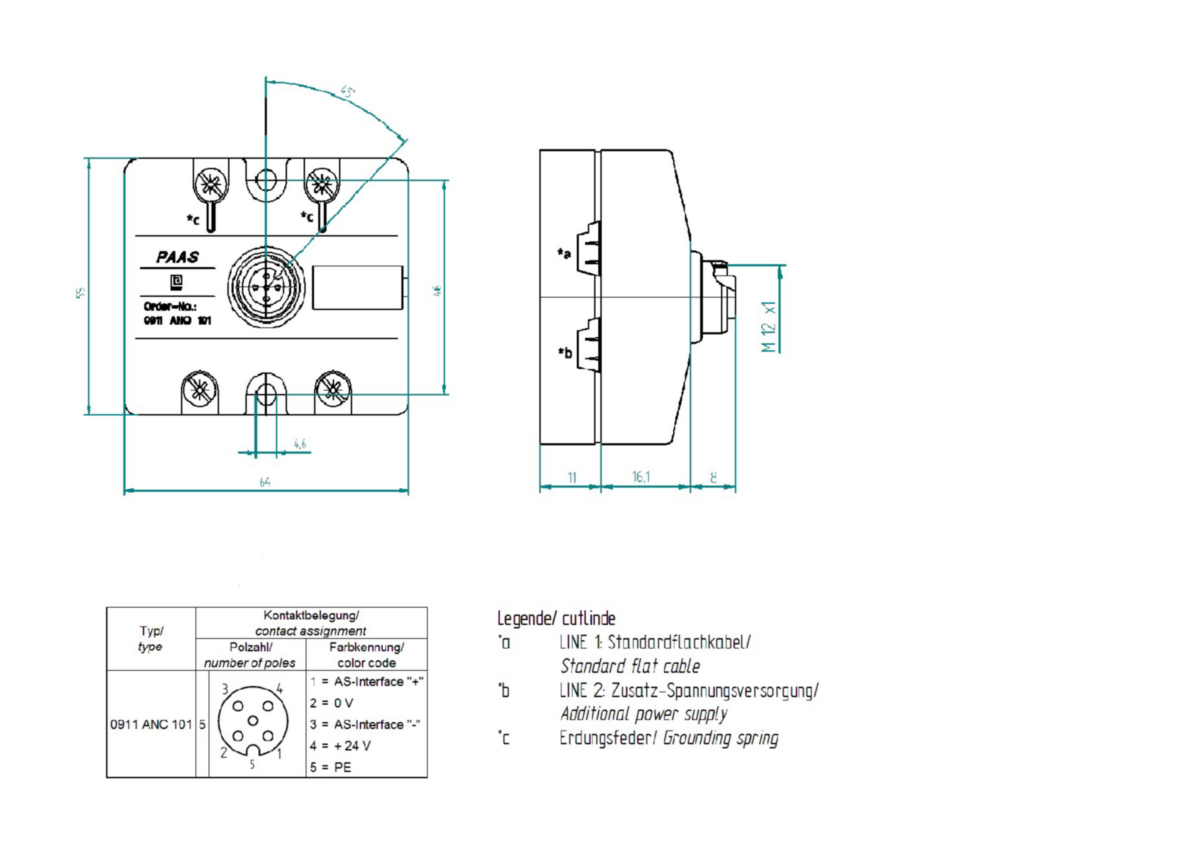

| Dimensions (W x H x D): | 55 mm x 32,5 mm x 64 mm |
| Ambient Temperature (Operation)*: | -25 °C to 80 °C |
| Contact Base Material: | CuZn |
| Contact Bearer Material: | PA |
| O-Ring Material: | FKM |
| Fastening Torque (I/O Connection): | M12: 0,5 Nm |
| Actuator Supply Voltage (Nominal): | 24 V DC (SELV/PELV) |
| Actuator Supply Voltage (Range): | 10 V DC to 30 V DC |
| Input Wiring: | 2-, 3-, 4-wire |
| Galvanically Isolated: | No |
| CE: | Yes |
| RoHS Compliant: | Yes |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| System Power Supply Connection Note: | *do not connect / disconnect under voltage! |
| Item # | Item Description |
|---|---|
| 10926 | 0911 ANC 101 |
| Update and Revision: | Revision Number: 0.44 Revision Date: 03-04-2023 |
