0911 ANC 001 - PAAS-R, pre-assembled passive branch with connection to Asi standard flat cable system



PAAS-R, pre-assembled passive branch with connection to Asi standard flat cable system

Product Description

Brand: Belden
Product Family: ASi
Product Sub Family: ASi
Item Description: 0911 ANC 001
Control Cable Interface: Open End

General Data

Housing Material: Plastic, PA
Housing Color: Black
Protection Degree / IP Rating**: IP65
Potted: No

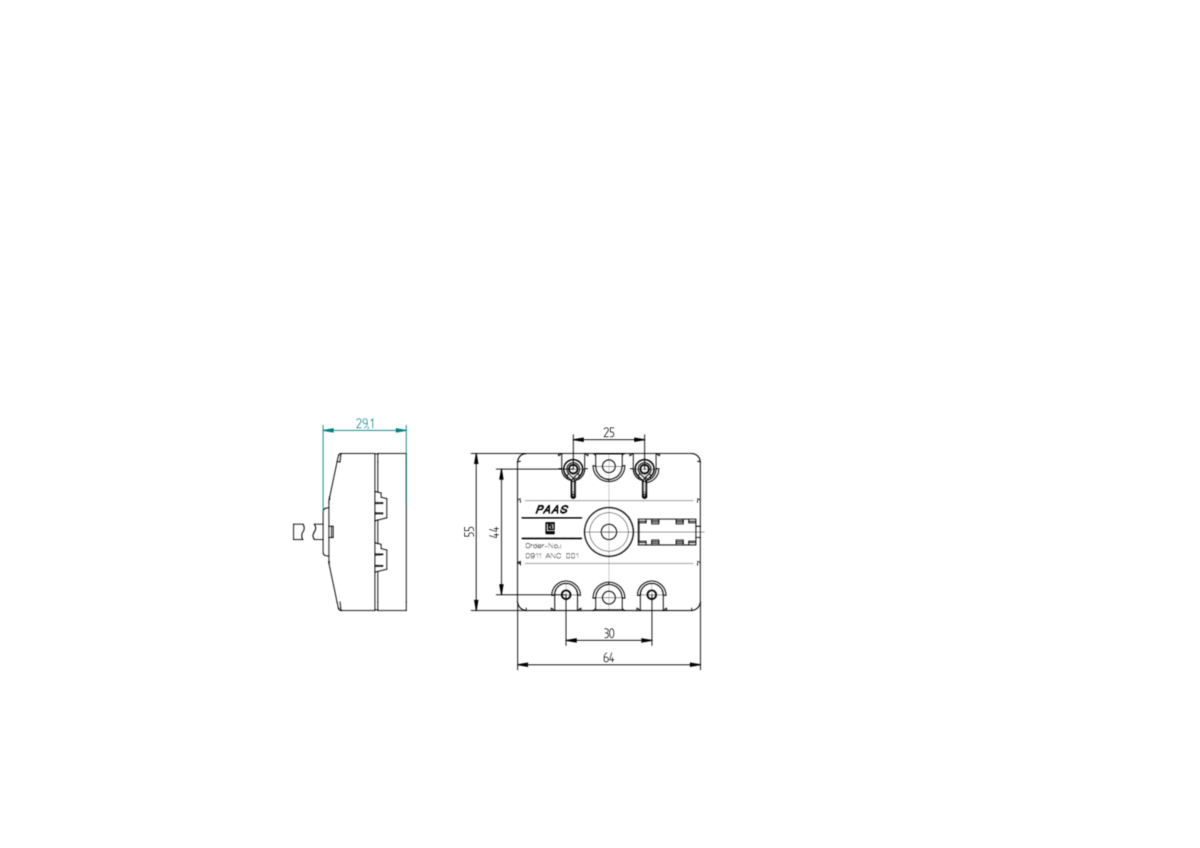

Dimensions (W x H x D): 55 mm x 29 mm x 64 mm
Ambient Temperature (Operation)*: -25 °C to 80 °C
Contact Base Material: CuZn

Power Supply

Actuator Supply Voltage (Nominal): 24 V DC (SELV/PELV)
Actuator Supply Voltage (Range): 10 V DC to 30 V DC

Digital Input Channels

Input Wiring: 2-, 3-, 4-wire

Digital Output Channels

Galvanically Isolated: No

Safety & Environmental Compliance

CE: Yes
RoHS Compliant: Yes

Notes

System Power Supply Connection Note: *do not connect / disconnect under voltage!
Variants
Item #Item DescriptionCable Length
109240911 ANC 001/1,5 M1.5 m
Update and Revision: Revision Number: 0.36 Revision Date: 04-08-2022
0911_ANC_001.zip
Description: 3D CAD Data - stp
Short Form Catalog IO Systems German.pdf
Short Form Catalog IO Systems English.pdf
No accessories are available for this product
