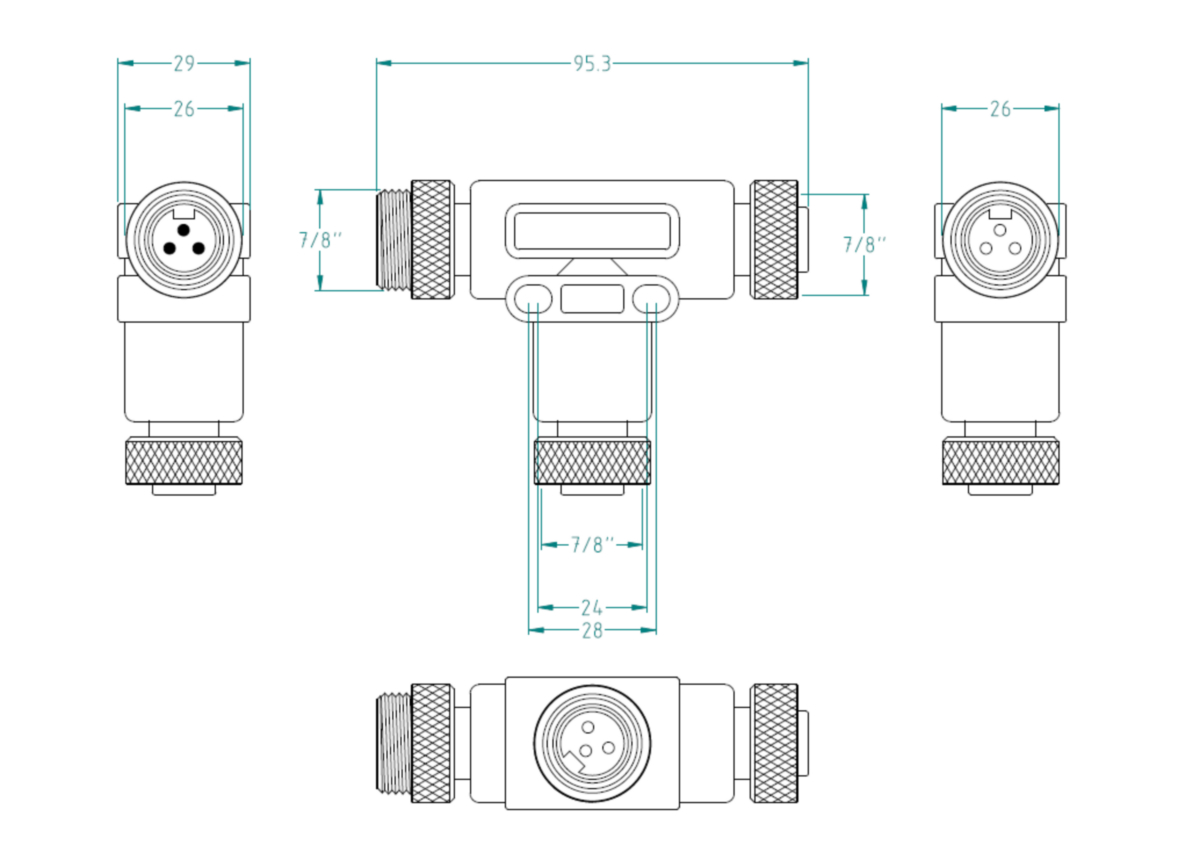

(4)Molded Tee Connector | 7/8- Male x two 7/8"- Female | #Contacts: 3 | 600 V / 8 A (pending UL 10 A)| UL 2238; cURus"
| Belden Brand: | Lumberg Automation |
| Note: | Do not connect / disconnect under load. |
| Housing Color: | Red |
| Number of Pins: | 3 |
| Type: | Catalog Product |
| Contact Bearer Color: | Yellow |
| Contact Bearer Material: | Thermoplastic polyurethane (TPU) |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Rated Current*: | 8 A |
| Rated Voltage: | 600 V |
| Type of Contact / Gender: | Socket |
| Contact Base Material: | Brass (CuZn) |
| Contact Plating: | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Coupling nut material: | Aluminum (Al), Anodized Black |
| Housing Material: | Thermoplastic polyurethane (TPU) |
| Oil Resistance: | Yes |
| UL: | UL 2238; cURus |
| UL-File: | E315587 |
| Customer: | Catalog Product |
| Update and Revision: | Revision Number: 0.2 Revision Date: 08-26-2025 |
