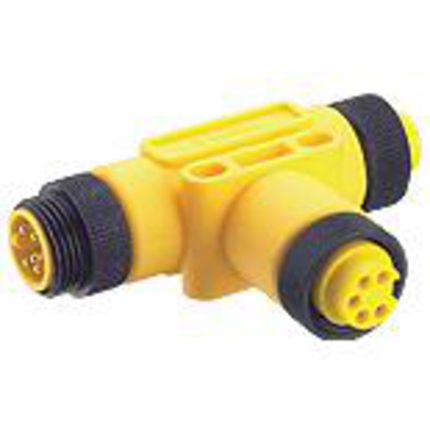

(4)Molded Tee Connector: 5 Contacts; one 7/8" Male x two 7/8" Female; 300 V | 8 A (truck) 4 A (drop)
| Number of Pins: | 5 |
| Contact Bearer Color: | Yellow |
| Contact Bearer Material: | TPU |
| Rated Current*: | 8 A |
| Rated Voltage: | 300 V |
| Type of Contact / Gender: | Male x 2 Female |
| Contact Base Material: | CuZn |
| Contact Plating: | Ag/Au |
| Item # | Item Description |
|---|---|
| 910000076 | 0906 UTP 301-Y |
| Update and Revision: | Revision Number: 0.12 Revision Date: 04-21-2025 |
